Plate Earthing System
A traditional and highly effective grounding method. Uses a 600x600mm Copper or GI Plate buried deep with a dedicated watering mechanism for maximum fault current dissipation.
System Overview

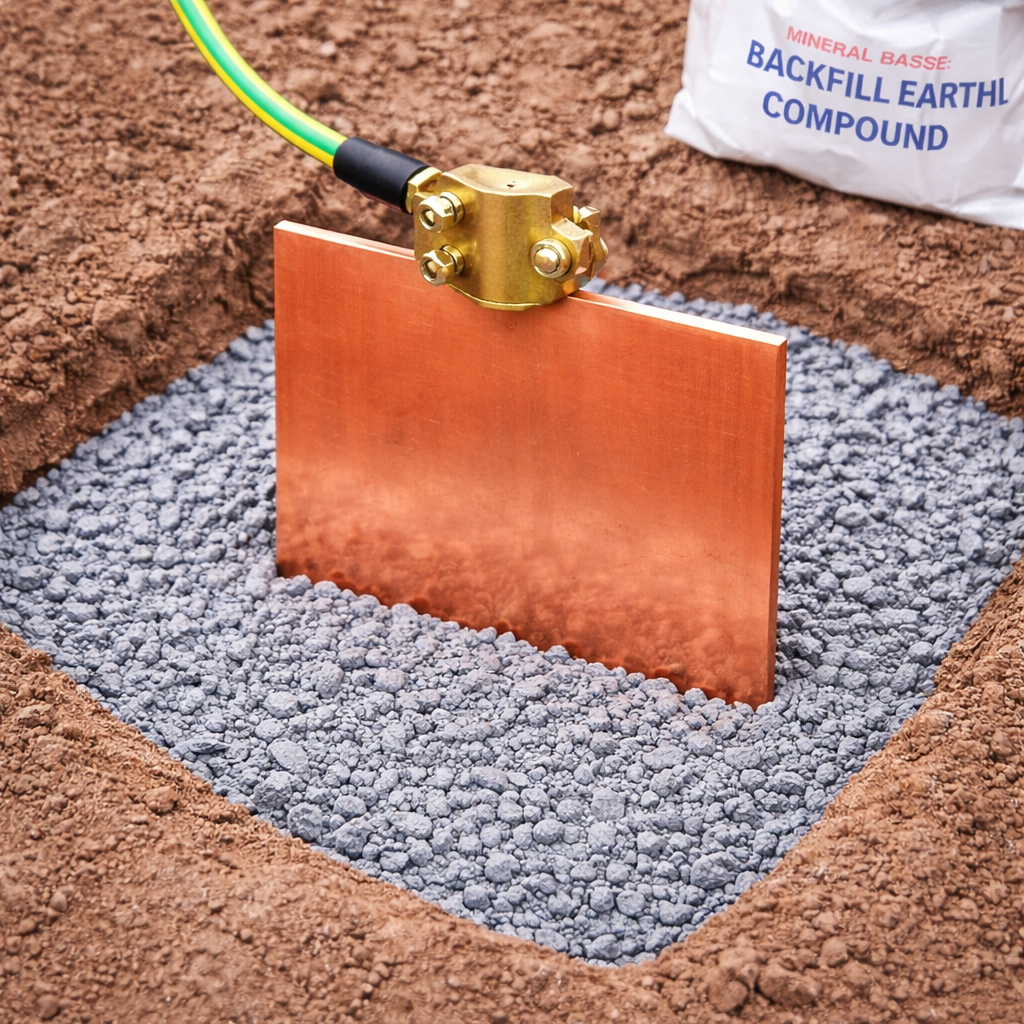

The Plate Earthing System is designed for areas requiring a large surface area contact with the soil. In this system, a large plate (Copper or Galvanized Iron) is placed vertically at a depth of usually 3 meters.
A GI Pipe (Watering Pipe) with a funnel is connected to the pit to ensure moisture reaches the bottom. The plate acts as the main electrode, while the surrounding layers of Charcoal and Salt retain moisture and improve conductivity.
Advantages of Plate System
Large Surface Area
Best for high fault current
Versatile Options
Available in Copper & GI
Proven Reliability
Traditional IS Standard method
Moisture Retention
Using charcoal & salt
Technical Data
Kit Components & Specs
| Component | Material Option A (Premium) | Material Option B (Standard) |
|---|---|---|
| Earth Plate (600x600mm) | Pure Copper (3mm / 5mm) | Galvanized Iron (6mm / 10mm) |
| Watering Pipe | GI Pipe (19mm - 25mm dia) | GI Pipe (19mm - 25mm dia) |
| Funnel | GI Funnel with Wire Mesh | GI Funnel with Wire Mesh |
| Connection Strip | Copper Strip (25x3mm) | GI Strip (25x6mm) |
| Pit Filling | Charcoal & Salt (50kg+) | Charcoal & Salt (50kg+) |
We provide customized kits for Sub-stations, DG Sets, and Transformers.
Complete Plate Earthing Kits
Get the complete set (Plate + Pipe + Funnel + Accessories) at the best market price.
