Pipe Earthing System

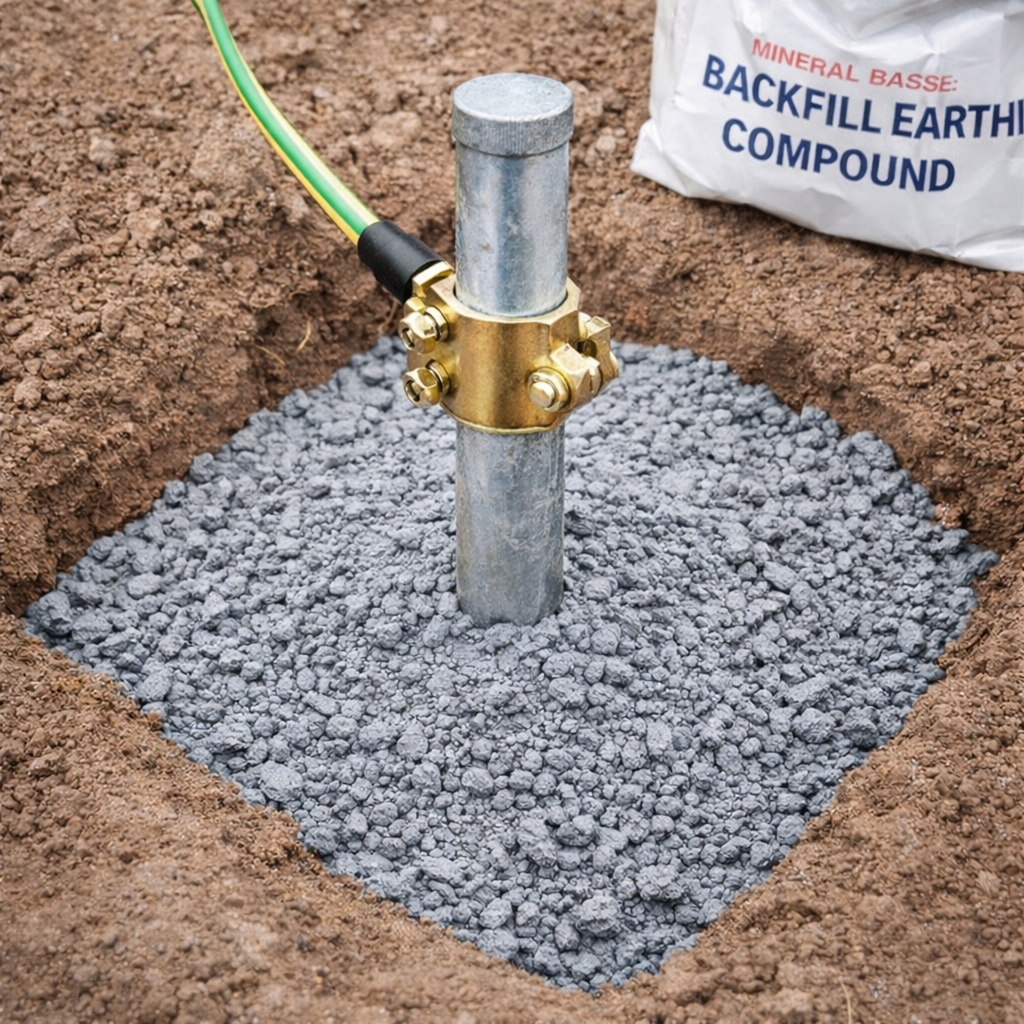

The classic IS:3043 compliant grounding method. Uses a perforated GI pipe with a funnel for water pouring, surrounded by alternate layers of Charcoal and Salt.
System Overview
Earthingz Pipe Earthing System is the most widely used conventional method of grounding. It involves a Perforated GI Pipe placed vertically in the earth pit.
The pipe is tapered at the bottom and has 12mm holes throughout its length. A Funnel with Wire Mesh is attached at the top to pour water, which keeps the surrounding soil moist. The pit is filled with alternate layers of Charcoal and Salt to maintain conductivity.
Why Use Pipe Earthing?
Cost Effective
Low installation cost
Easy Maintenance
Watering via funnel
Heavy Fault Capacity
Large surface contact
IS 3043 Standard
Government approved
Technical Data
System Components & Sizes
| Component | Material / Spec | Standard Size |
|---|---|---|
| Earthing Pipe | Galvanized Iron (Class B/C) | 40mm / 50mm / 80mm Dia |
| Length | Single Piece Pipe | 2.5 Meter / 3 Meter |
| Perforations | 12mm Drilled Holes | Staggered (Zig-Zag) |
| Watering System | GI Funnel with Wire Mesh | Standard Fitment |
| Pit Filling | Charcoal & Crystal Salt | Approx 50kg per Pit |
We supply the complete kit: Perforated Pipe + Funnel + Mesh + Nut Bolts.
Complete Earthing Kit Supplier
High-quality GI materials for long-lasting conventional earthing pits.
