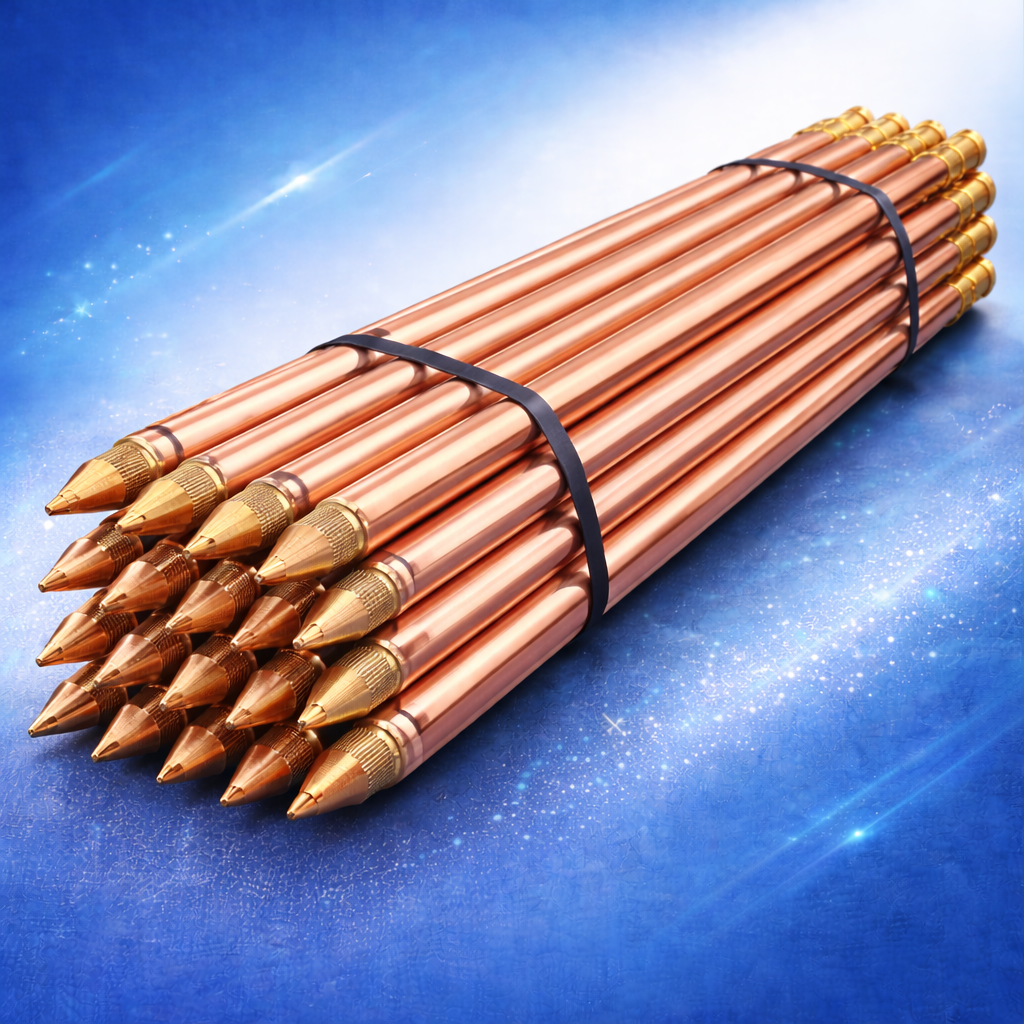

Copper Bonded Earthing Rod
Superior molecular bonding of 99.9% pure electrolytic copper onto a high-tensile steel core. Designed for maximum conductivity and a lifespan of 25+ years.
Product Overview
Earthingz Copper Bonded Rods represent the state-of-the-art in earthing technology. Unlike traditional copper pipes, these rods feature a uniform layer of 99.9% Pure Electrolytic Copper molecularly bonded to a low-carbon, high-tensile steel core.
This molecular bonding ensures that the copper layer will not peel or crack when the rod is driven into the ground. It offers the electrical performance of pure copper with the mechanical strength of steel, making it the most reliable choice for sensitive equipment grounding.
Why Choose Copper Bonded?
Molecularly Bonded
No peeling or cracking
Long Life (25+ Yrs)
Corrosion resistant
Cost Effective
Better than pure copper
Highly Conductive
Excellent fault dissipation
Technical Data
Standard Sizes & Specifications
| Diameter (mm) | Length (Meter) | Coating Thickness | Thread Size (UNC) |
|---|---|---|---|
| 14.2 mm | 2 Mtr / 3 Mtr | 100 / 254 Microns | 5/8" |
| 17.2 mm | 2 Mtr / 3 Mtr | 100 / 254 Microns | 3/4" |
| 23.0 mm | 3 Meter | 254 Microns | Custom |
| Custom Size | Up to 6 Meter | Up to 300 Microns | As per Drawing |
We also provide Rod to Tape Clamp, Couplers, and Driving Heads.
UL Listed Rods at Best Price
Trusted by contractors for Railway, Defense, and Solar Projects.
