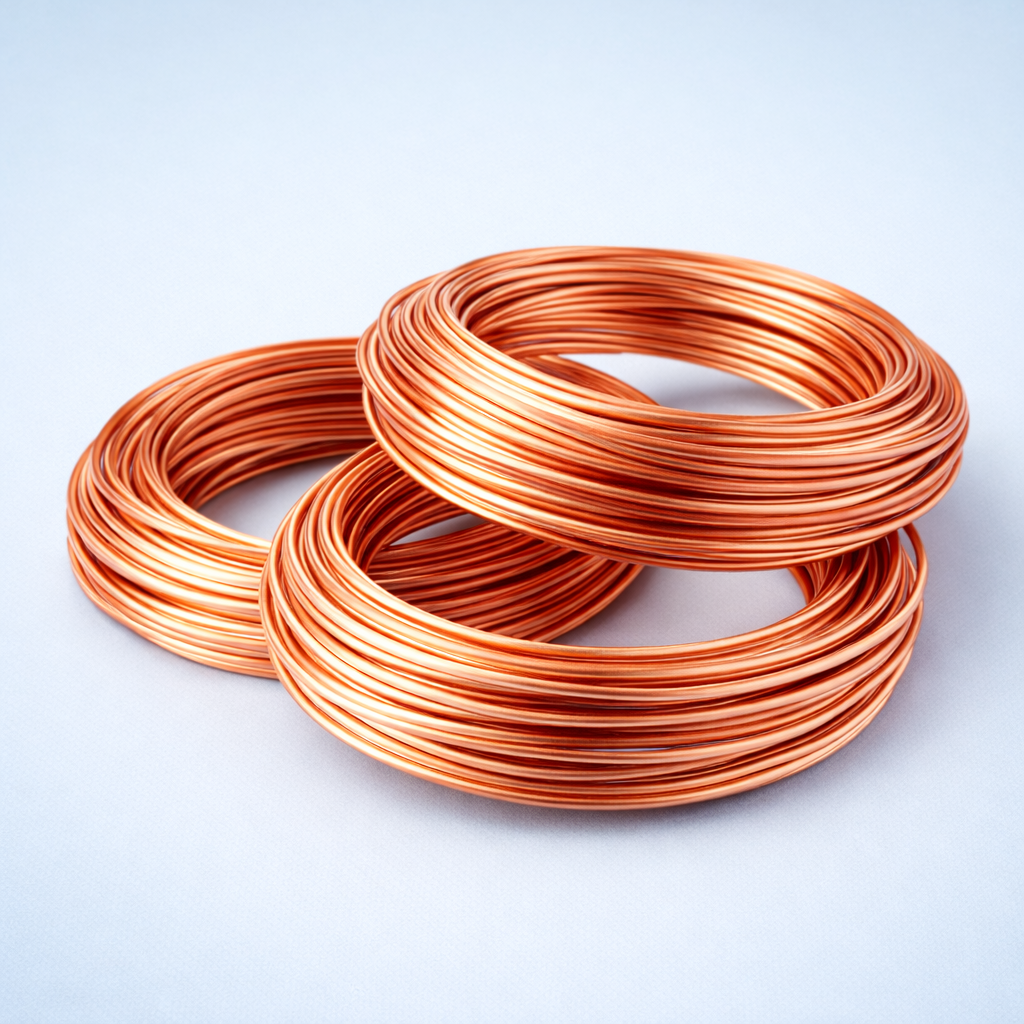

Copper Earthing Wire
99.9% Pure Electrolytic Grade Bare Copper Wire. Soft, flexible, and highly conductive for critical safety connections and panel earthing.
Product Overview
Earthingz Copper Wires are drawn from high-quality electrolytic copper rods to ensure maximum conductivity and flexibility. These are Bare Copper Conductors used extensively in grounding grids, panel boards, and lightning protection down conductors.
Unlike GI wire, copper wire does not corrode easily and offers a much lower resistance path for fault currents, making it the standard choice for residential safety and industrial machinery.
Why Choose Pure Copper Wire?
Highest Conductivity
Superior fault dissipation
Soft & Flexible
Easy to route in panels
Thermal Stability
Withstands high current
Long Lifespan
Excellent corrosion resistance
Technical Data
Size & Specifications
| SWG Size | Diameter (Approx mm) | Material Purity | Type |
|---|---|---|---|
| 8 SWG | 4.06 mm | 99.9% Copper | Solid Bare Wire |
| 10 SWG | 3.25 mm | 99.9% Copper | Solid Bare Wire |
| 12 SWG | 2.64 mm | 99.9% Copper | Solid Bare Wire |
| 14 SWG | 2.03 mm | 99.9% Copper | Solid Bare Wire |
| Stranded | Custom (e.g. 16/25/35 sqmm) | 99.9% Copper | Multi-Strand Wire |
Sold by weight (Per Kg) or per Coil length.
Need Copper Wire for Earthing?
Best LME based rates for bulk orders. Ideal for panels, transformers, and grid bonding.
